Application

Technical Data

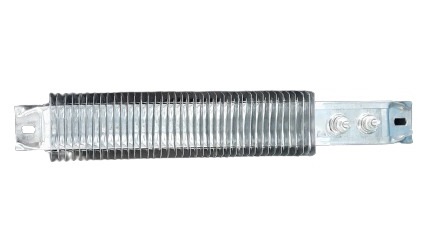

Generally availble from 0.5Kw to 3.5Kw, 240 Volts / AC / 50 Hz / Single Phase , Operaters upto 4000F Spl. Heaters can also be made according to specification .

Construction

Are made of stainless steel , GP Sheathing having the heat resistance Chrome nickel 80/20 element coil protected under the best insulation to avoid the leakage of current and to ensure the long life of the heaters. Finns *(3"x 1.5"), ** (3.5" x1.5") which increase the output of heat to the maximum dissipation and having screw type terminals on one end for proper connection

Installation

Within forced air only in horizontal position

Technical Data

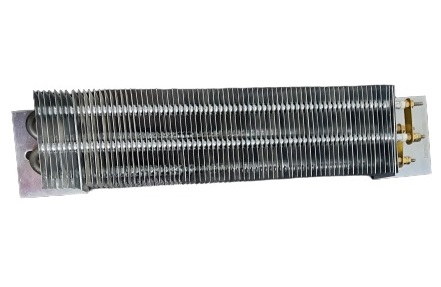

Generally available from 1.5 Kw to 4.0Kw , 230 Volts / AC / 50Hz / Single Phase, Operates upto 5500 F. Two L-clamps are provided on both ends of heaters for proper installation.

Construction

Finned Air Heaters are consisting of two tubuler mineral filled incoloy-800/stainless steel - 321 sheathed elements dia 8 mm, in one unit G.P. Finns (3.5" x 1.5") are provided for quick dissipation of heat. It can be installed in any position as per space requirements. Its 50% wattage can be utilized if required. Its special feature - maximum wattage in minimum space.

Installation

Within forced air with Thermostat (Optional) in any position
