CIRCULAR INLINE FANS

Series DIF

Application

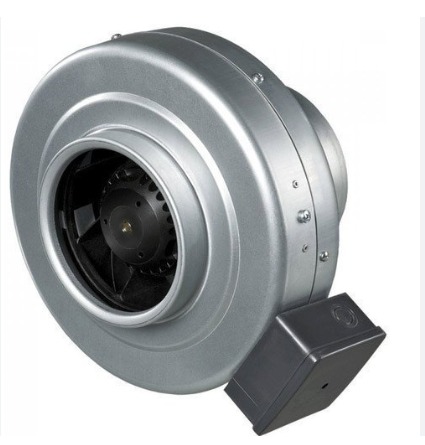

Daspass inline fan is useful for supply and exhaust ventilation systems for various premises suitable for external surface mounting or behind false ceiling. The fan casing is made of galvanised steel.

Design

The fan casing is made of galvanised steel

Motor

The impeller with backward blades is powered by the single phase motor with external rotor and overheating protection with automatic restart. The motor is equipped with ball bearings for long service life designed for at least 40000 hours. For precise features , safe impeller is dynamically balanced while assembly. Motor protection rating IP 44 & Class F Insulation.

Speed Control

Both smooth and step speed control is performed with the thyristor or auto transformer controller. Several fans can be connected to one controller current do not exceed the rated controller values.

Mounting

Mounting at any angle to wall or ceiling is performed with fastening brackets supplied with the unit. The fan is powered by means of the external terminal box. Electric connection and mounting shall be performed in compliance with the manual and wiring diagram on the terminal box.

External Terminal Box for Power Supply
Fastening Bracket for easy mounting supplied with the fan

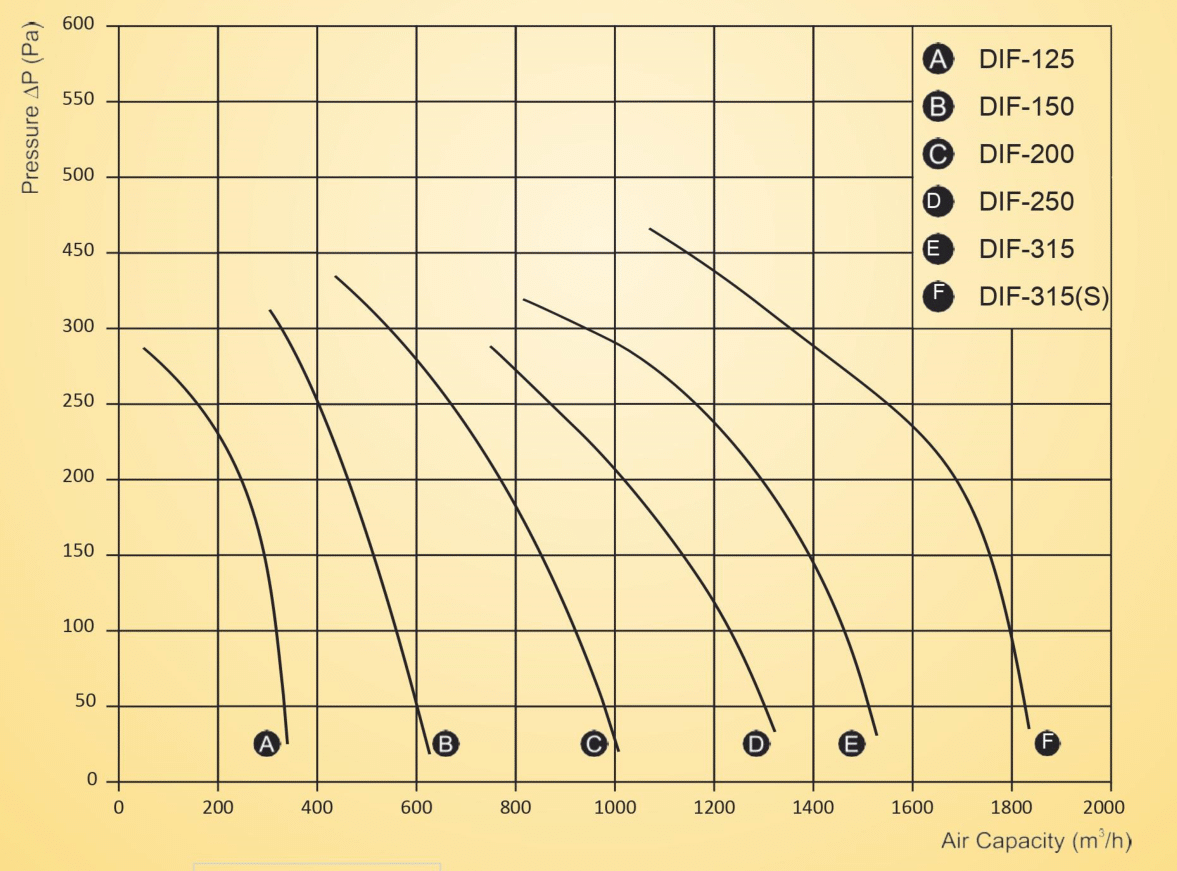

DIF 125 DIF 150 DIF 200 DIF 250 DIF 315 DIF 315 (S)
Voltage (V/50 Hz) 230 230 230 230 230 230
Power (W) 80 150 150 200 250 290
Current (A) 0.38 0.65 0.7 0.9 1.1 1.34
RPM [min-1] 2500 2580 2580 2550 2500 2600
Noise level at 3m [dBA] 45 46 48 51 52 53
Maximum Operating Temperature [0C] -25+55 -25+55 -25+55 -25+50 -25+45 -25+45
Protection Rating IP x 4 IP x 4 IP x 4 IP x 4 IP x 4 IP x 4
Insulation Class F F F F F F

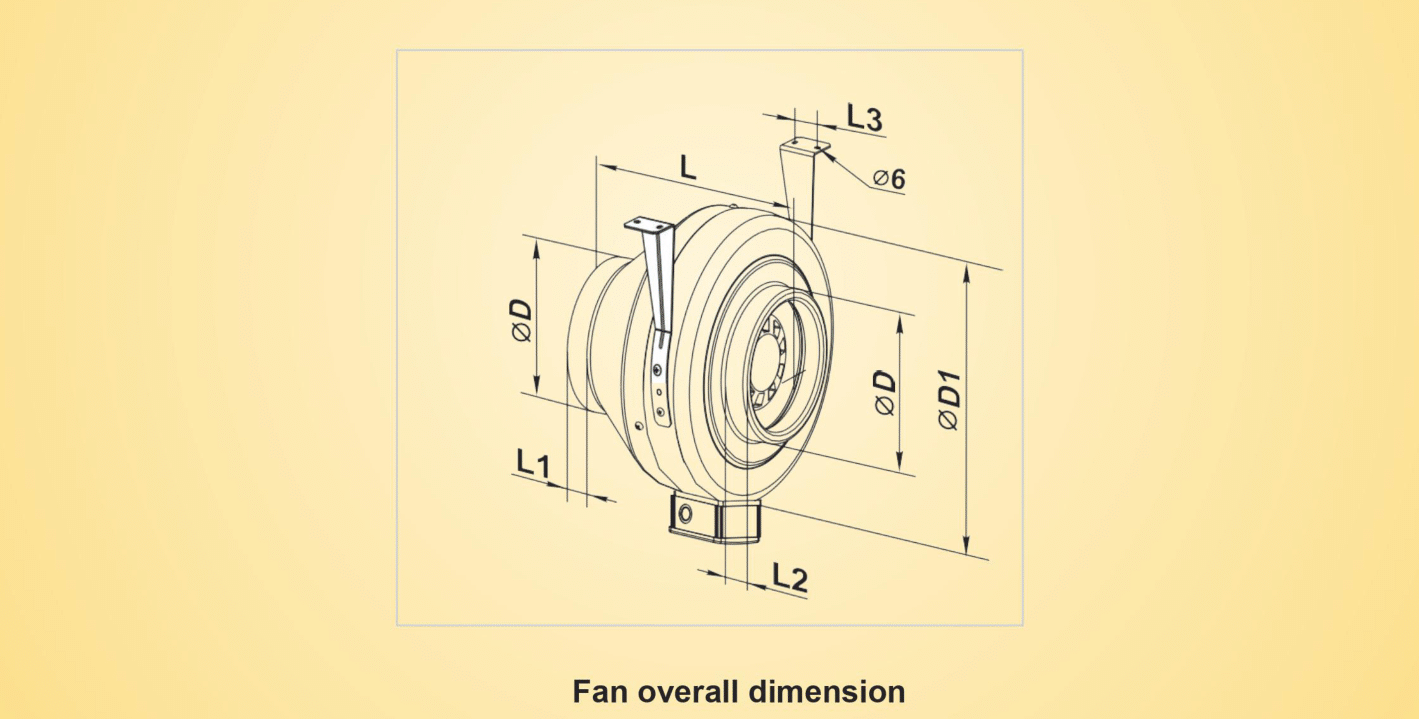

Type Dimension [mm] Weight [kg]
DIF 125 123 247 193 26 26 30 3.5
DIF 150 148 336 235 25 25 30 5.3
DIF 200 198 336 228 26 26 40 5.3
DIF 250 248 336 213 25 32 40 5.9
DIF 315 313 403 256 26 26 40 7.3
DIF 315(S) 313 403 256 26 26 40 7.8

DIRECT DRIVE CABINET / BOX INLINE FANS DDCIF

Daspass Appliances

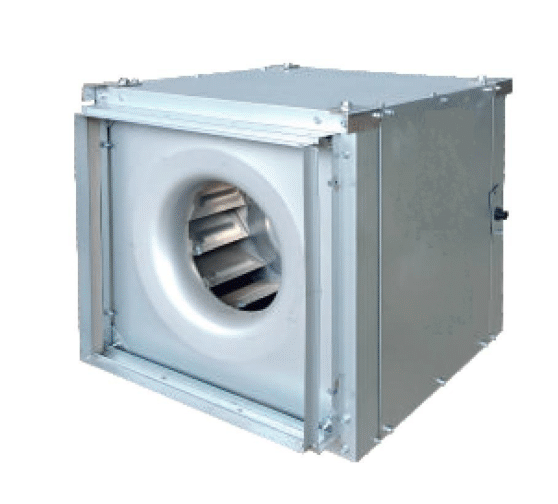

Cabinet Box Fans (Series DCIF ) features a unique combination of Rugged Construction, High Efficiency and Low Sound Level & Ease od Service . The construction of fan allows ot to be mounted in any configuration - Horizontal or vertical.

DGIF

Box Fans are ideal selection for inddor clean air application for Exhaust , Supply or Make-Up Air System . The compact Design enables installation in tight spaces & are suitable to handle air upto 500C

CABINET

The fan housing is constructed of Rigid Structural members & formed GSS Panels in 275 GSM Zinc Coating .

IMPELLERS

Fans are provided with Aluminium construction Backward Inclined , Non Overloading , Statically & Dynamically balanced Centrifugal Wheels to deliver maximum efficiency

DUCT COLLAR

Large Size Duct Collar are provided for reduced outlet velocity hence quieter operation

MOTOR

permanently lubricated , sealed Ball Bearing motors are selected to provided trouble free operation with minimum maintenance . Motor have IP-44 Protection with Class-B insulation. 100% factory Tested Bearings are designed for Air Handling application with life in excess of 1,00,000 hours

MOTOR FRAME

Constructed of heavy guage galvanised steel for sturdy support

ACCESS PANEL

The Cabinet construction have access panel on two sides to permit easy access to all internal components

OPTIONAL

The unit comes with optional features as

  • >> 25mm Thick Pre-Filter for Fresh Air Application
  • >> Internal Acoustic Insulation of Panels.
    • Model Speed (RPM) Power (W) Current (AMP) Noise Level at 3M (DBA) Weight (kg)
    DCIF-14 1450 300 2.5 53 29
    DCIF-18 1450 300 2.5 55 32
    DCIF-25 1450 500 4.8 60 41
    DCIF-33 1450 900 7.5 63 45

    Note: All fans are suitable for 200V, 50Hz, Single Phase Power Supply

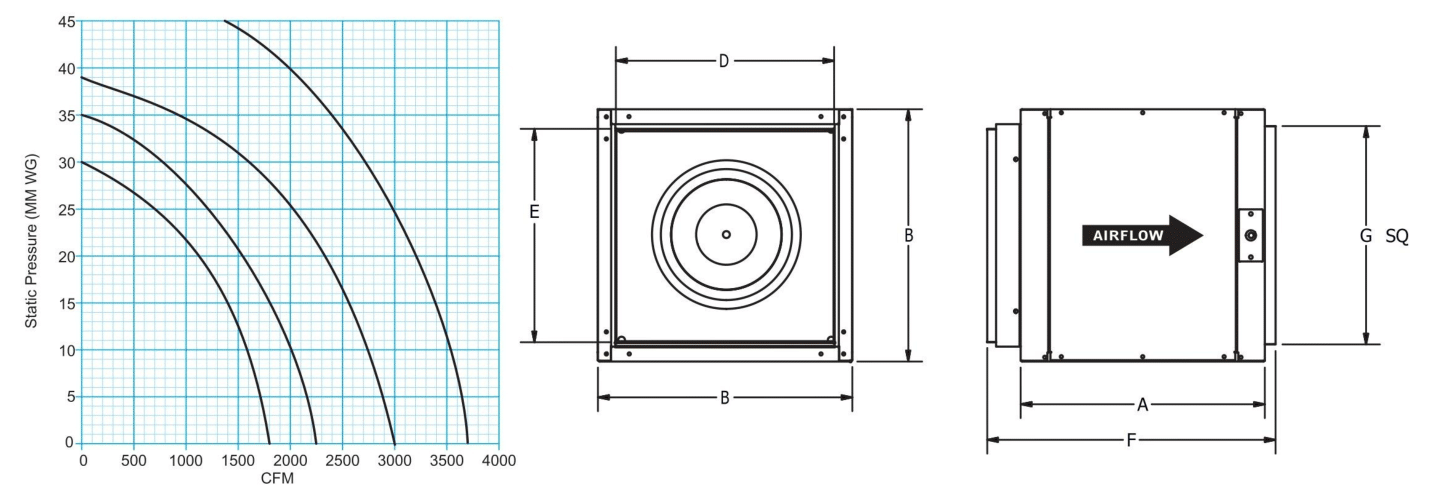

    Model A B D E F G
    DCIF-14 535 481 400 390 635 404
    DCIF-18 538 530 450 442 640 452
    DCIF-25 561 582 500 492 664 503
    DCIF-33 657 657 578 568 762 580

    Sound-Insulated Box Fans

    Series- DSIF

    Applications

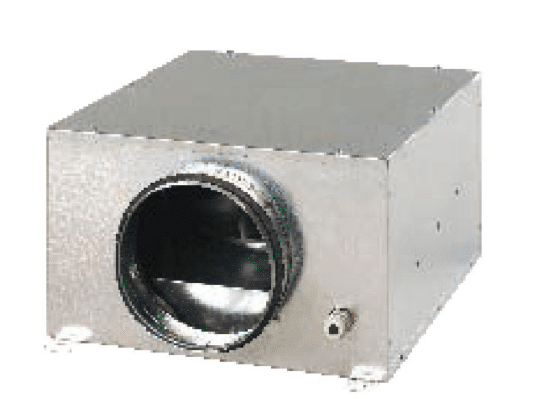

    DSIF fan design enables its application in supply and exhaust ventilation systems for the premises with high requirements to noise level and limited mounting space. Provision is made for installation in a premise above the suspended ceiling.

    Design

    The fan casing is made of galvanized steel sheet and provided with heat- and sound-insulating material. Round connecting pipes are fitted with rubber seals.

    Motor

    The centrifugal impeller with backward curved blades is powered by means of asynchronous motor with external rotor. The motors are equipped with built-in thermal overheating protecting with automatic restart. Motor ball bearings with selective lubricants oil ensure low noise and maintenance- free fan operation

    Speed Control

    Both smooth or step speed control is performed with the thyristor or autotransformer controller. The motor speed is controlled by means of power voltage decrease. Several fans can be connected to one controller in case their total power and operating current do not exceed the controller rated values.

    Mounting

    The fan shall be fixed to a building by means of supports, suspension brackets or fixation brackets. The fan can be mounted in any position with respect to the air flow direction indicated with a pointer on the fan casing. Access to the fan maintenance shall be provided.

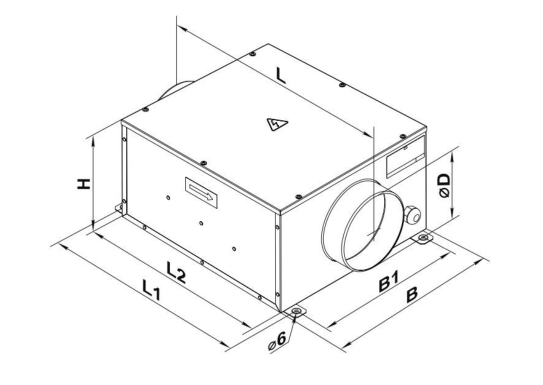

    Type Dimension (mm) Mass (kg)
    ØD B B1 H L L1 L2
    DSIF 150 149 352 310 212 477 410 380 6,4
    DSIF 250 249 432 368 287 588 506 480 12,5
    DSIF 315 314 502 438 397 648 566 540 15,5

    Technical Data:

    DSIF - 150 DSIF 250 DSIF 315
    Voltage [V / 50 Hz] 230 230 230
    Power [W] 72 198 322
    Current [A] 0,32 0,87 1,40
    Maximum air flow [m3/h] 420 1300 2150
    RPM[min-1] 2600 2420 2670
    Noise level at 3 m [dBA] 36 41 43
    Maximum Operating Temperature [0C] -25+55 -25+50 -25+45
    Protection Rating IP x 4 IP x 4 IP x 4

    Mixed-Flow Inline Duct Fan

    DMFI- SERIES

    Applications

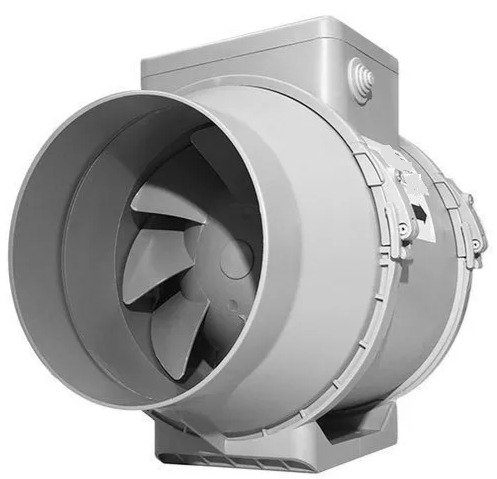

    "Daspass Appliances" DMFI fans are featured with wide capabilities and high performance of axial and centrifugal fans and are specifically designed for supply and exhaust ventilation of premises requiring high pressure , powerfull air flow and low noise level.

    Design

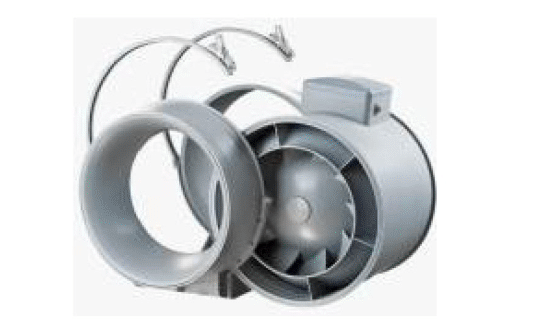

    The fan casing is mad of high quality and durable low-flammable polypropylene. the removable impeller and motor block with a terminal box is fixed to the casing assembled with the spigots by means of special clamps with latches. This make the fan maintenance fasst and easy . The fan maintenance does not require total disassmbling . Just pull out the central block from the casing and perform required servicing

    Design features:

    The inlet spigot is equipped with a collector to enable smooth are inlet to the fan . The hemispheric impeller shape and specially profiled blades increase the air flow circular velocity and provide higher pressure and capacity as compared to standard axial fans.

    Motor

    The models of DMFI series are equipped with a single-phase motor. The motors have thermal overheating protection to prevent the motor overload. The ball bearing extend the motor service life up to 40,000 hrs. at non-stop operation. The motor has IP X4 ingress protection & Class B Insulation.

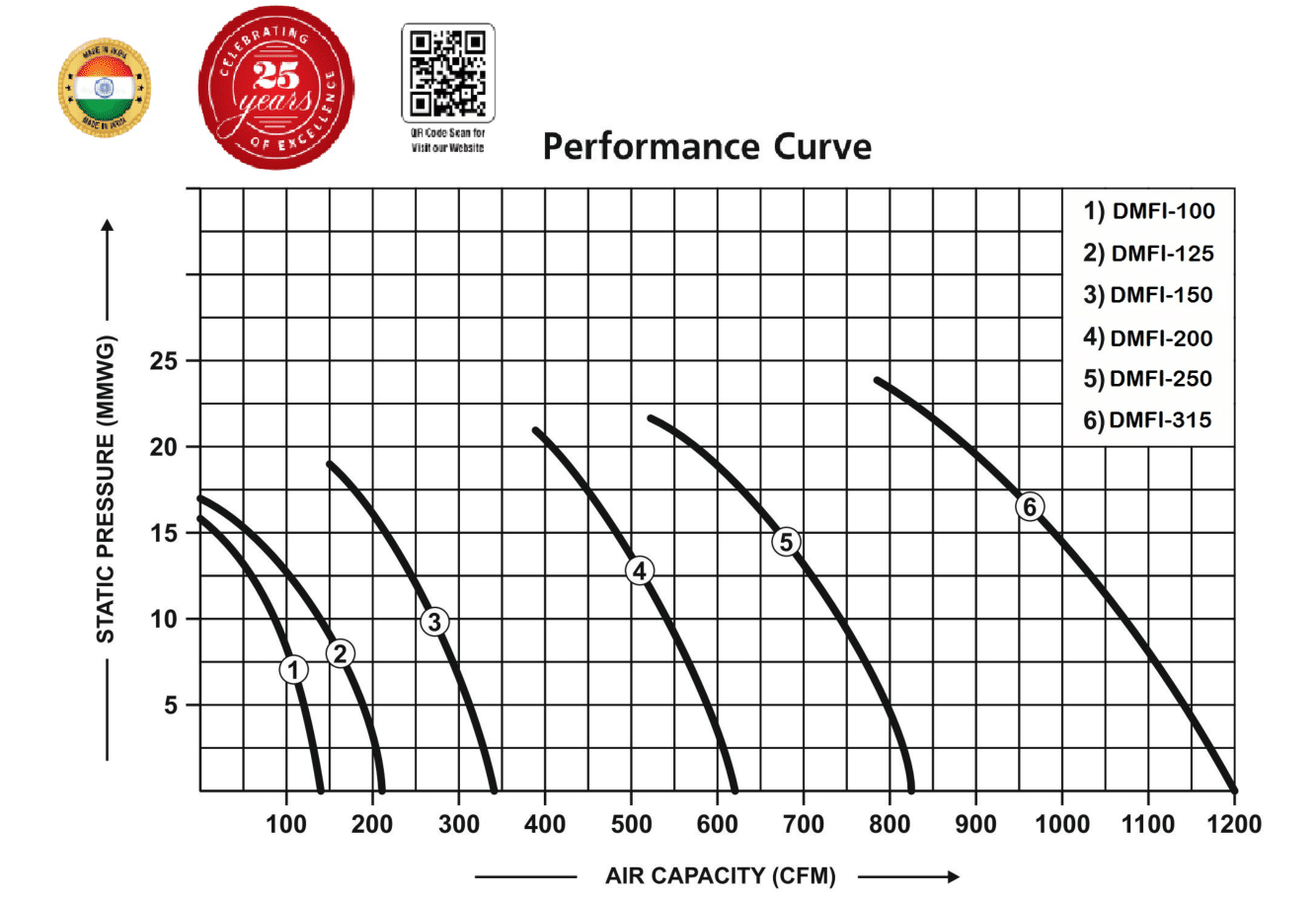

    Technical Data

    Model No. Power (W) Current (Amps) Speed (RPM) Noise (db) Net Weight (kgs)
    DMFI-100 26 0.12 2200 31 1.5
    DMFI-125 33 0.14 2250 32 1.5
    DMFI-150 54 0.22 2550 33 2.6
    DMFI-200 128 0.53 2450 49 4.9
    DMFI-250 225 1.20 2450 52 7.5
    DMFI-315 390 0.90 2350 53 11.0

    Notes:

  • 1 - All Fans are suitable for 220V, 50Hz Single Phase power supply
  • 2 - All Fan Motors have Class-B insulation.

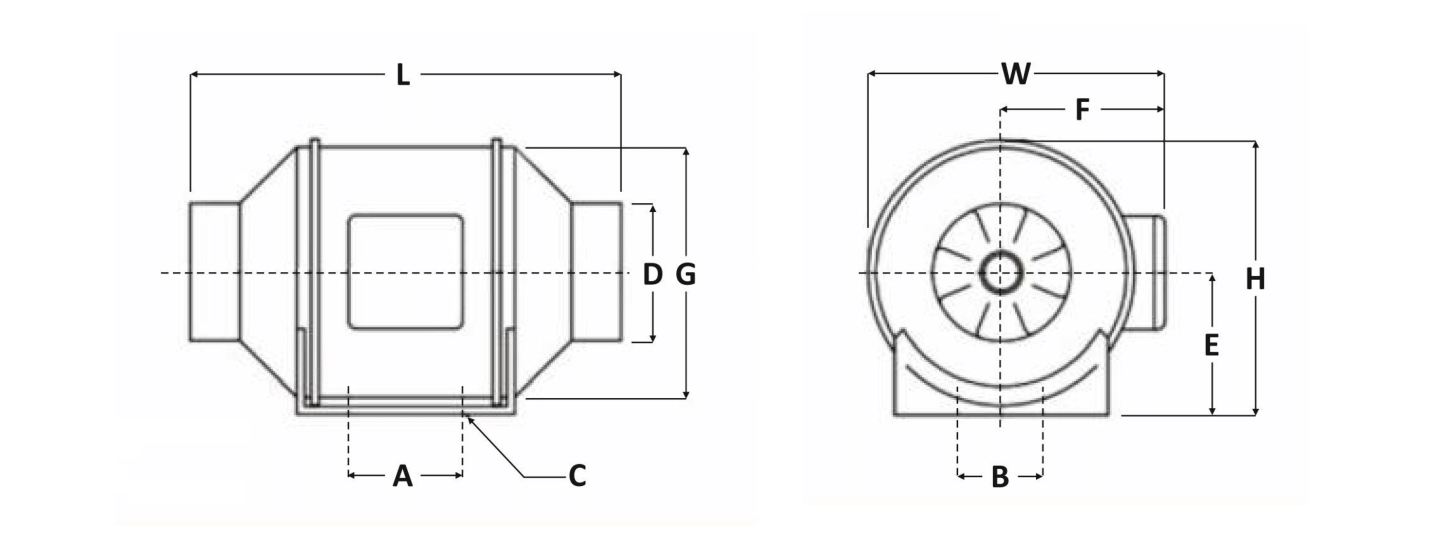

    • Model No. A B C Ø D E F Ø G L W H
    DMFI-100 80 60 Ø 4.5 97 99 116 163 302 304 195
    DMFI-150 80 60 Ø 5.0 147 109 127 187 313 227 208
    DMFI-200 100 94 Ø 5.5 197 125 137 205 302 249 237
    DMFI-250 150 150 Ø 8*11 247 150 174 261 383 310 286
    DMFI-315 281 178 Ø 8*11 312 187 216 325 446 386 357

    Ceiling Inline Fan

    Application:

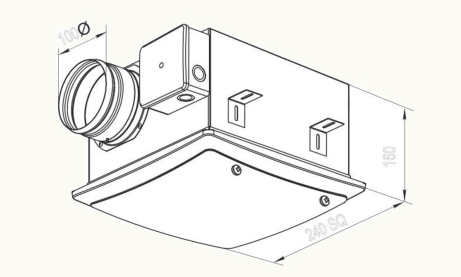

    "Daspass appliances" Ceiling Inline Fan are used for exhaust ventilation systems in various premises with limited mounting space behind false ceiling. Designed for connection to Ø 100 mm round air ducts.

    Desgin:

    The fan casing is made of galvanised steel with spring loaded back draft damper to prevent back air flow. The front decorative plate is made of ABS plastic fitted with filter.

    Motor:

    Single phase external rotor motor with a centrifugal impeller The motor is equipped with built-in overheating protection with automatic restart. The motor ball bearings ensure 40 000 hours service life. For precise features, safe operation and low noise, each impeller is dynamically balanced while assemble. Motor ingress protection rating IP 44.

    Speed control

    Speed control is performed in smooth or step mode with a thyristor or auto transformer. Several fans may be connected to one speed controller if the total fan power and current do not exceed the rated speed controller parameters.

    Mounting:

    The fan is connected to power mains through the external terminal block. Electric connections and installation operations must be in compliance with installation guidelines and wiring diagram.

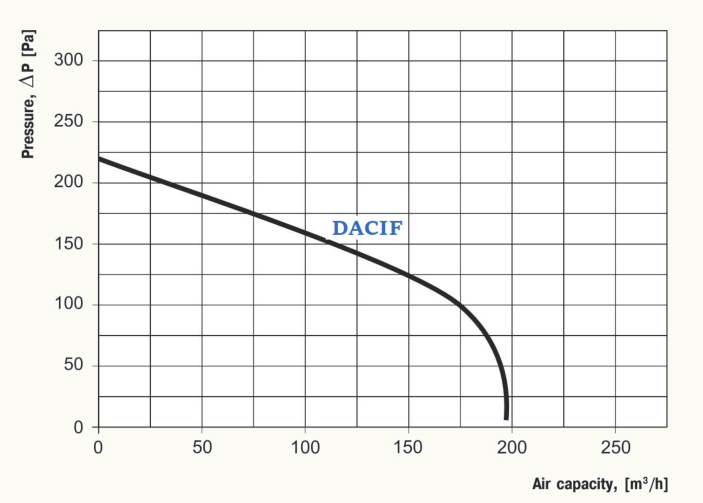

    Technical Data

    DACIF
    Voltage (V/50/60 Hz) 1-230
    Power (W) 56
    Current (A) 0.34
    Maximum air flow [m3/h] 190
    Rotation per minute [min-1] 2300
    Noise level at 3m [dBA] 42
    Maximum Operating temperature [0C] -25+45
    Ingree Protection Rating IP x 4
    Weight 2.9 kg
